FAQ:

After connecting the car camera, the screen shows no signal, black screen and no picture, what should I do?

A) Please check your signal format (AHD/CVBS), choose right signal to run the camera.
B) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.

What functions are controlled by each of the 3 cables of the rear view camera?

Green Cable: Video Signal Control
• AHD-CVBS720P Camera:
Default ( AHD )+( 1280x720 )+( 170° )
Cut the Green cable→
( CVBS )+( 1280x720 )+( 170° )

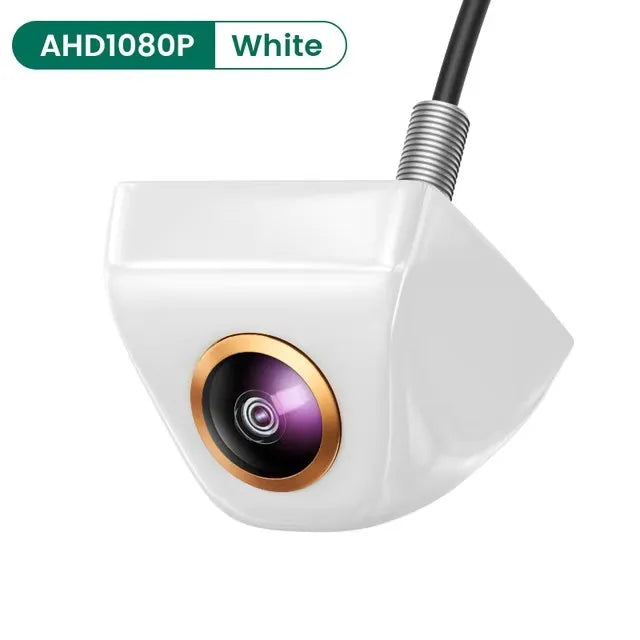

• AHD1080P Camera:
Default ( AHD1080P )+( 1920x1080 )+( 175° )
Cut the Green cable→
( CVBS )+( 1280x720 )+( 125° )

Orange Cable: Mirror Control
• The default is the rear view camera (Mirroring).
Cut the Orange cable→
Front view camera ( Non-mirroring )
You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera

White Cable: Parking Line Control
• Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power supply, that can change the parking line.
