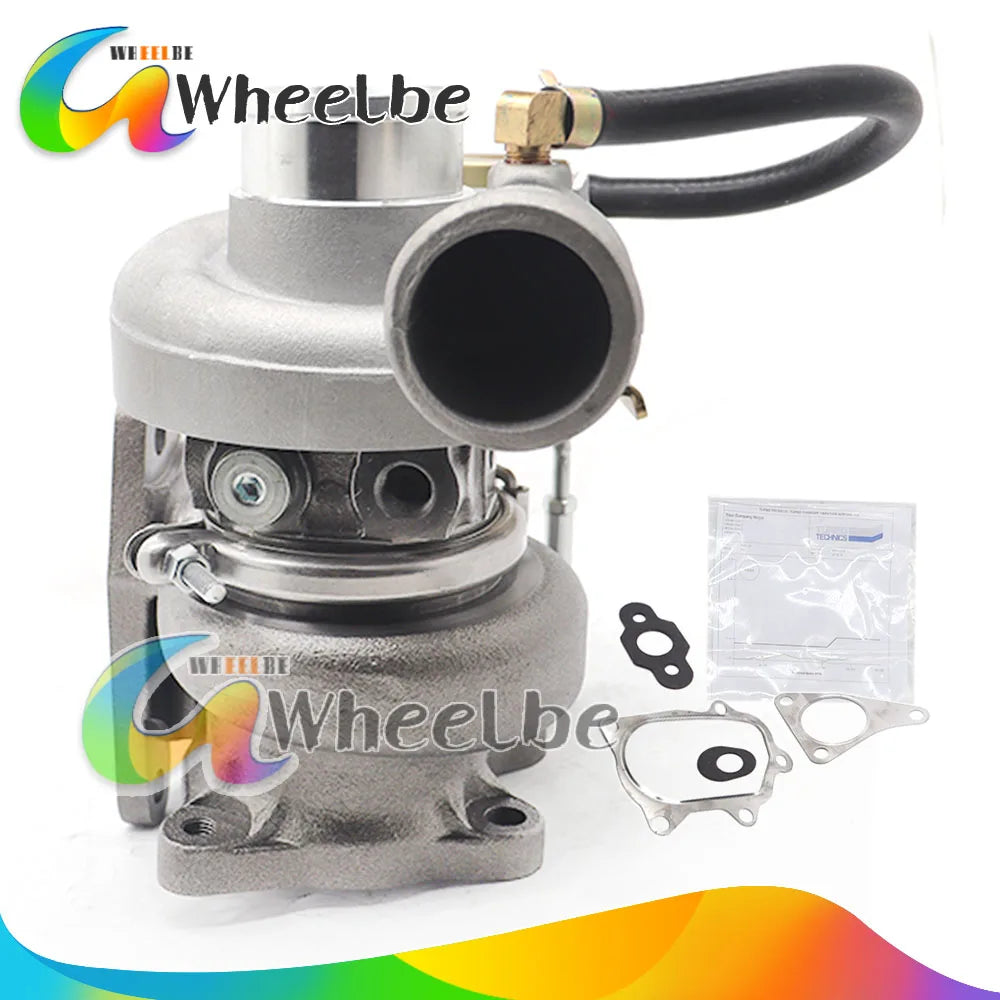

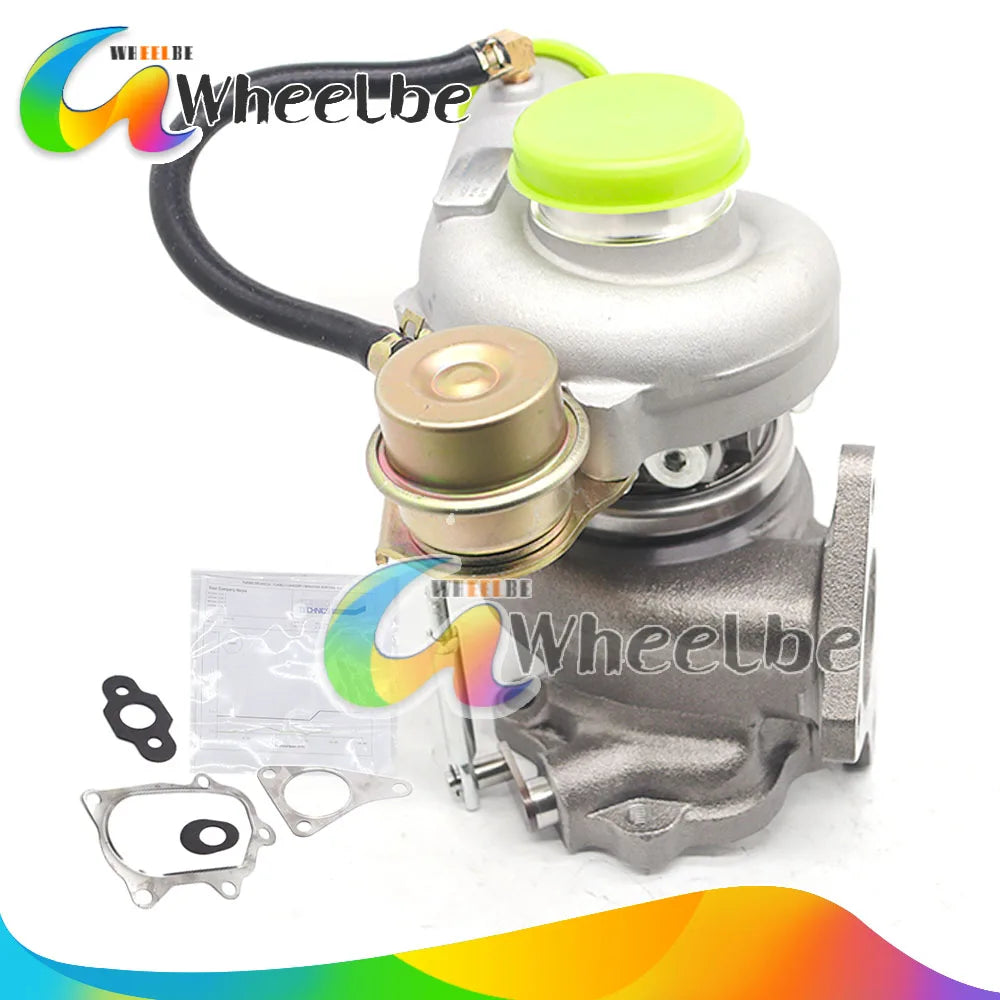

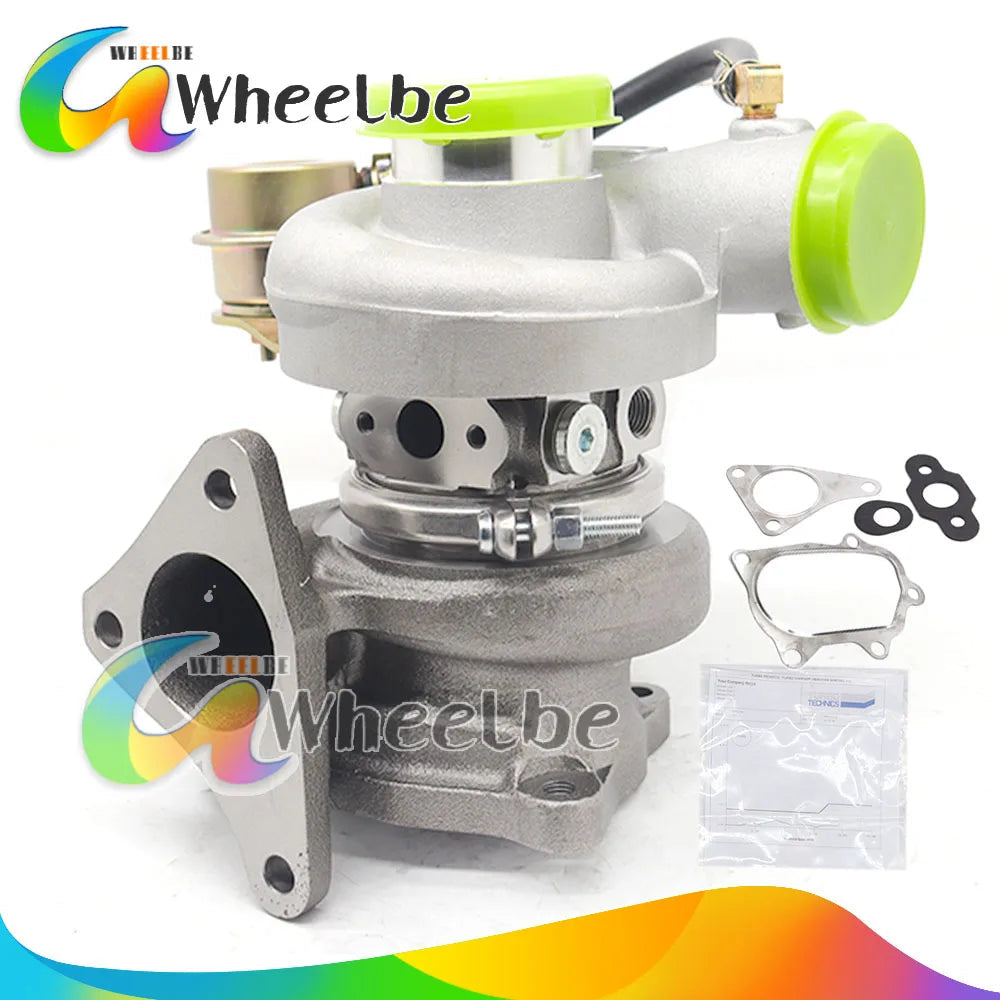

TD05 16G Turbo Compressor For Subaru WRX STI IMPREZA EJ20 EJ25 420BHP 2005 2006 Turbocharger Turbine
TD05 16G Turbo Compressor For Subaru WRX STI IMPREZA EJ20 EJ25 420BHP 2005 2006 Turbocharger Turbine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Color: Silver + Black
Condition: Brand New
Country/Region of Manufacture: Mainland,China
High-concerned chemical: None
Item Height: Standard
Item Length: Standard
Item Weight: 1-35KGS
Item Width: Standard
Manufacturer Part Number: TD05-16G 49178-06310 4917806310 25042101
Material: Iron / AL / Plastic
OEM NO.: TD05-16G 49178-06310 4917806310 25042101
Origin: Mainland China
Other Part Number: N
Placement on Vehicle: Front
Special Features: Turbo Charger Parts
TD05 16G Turbo Compressor For Subaru WRX STI IMPREZA EJ20 EJ25 420BHP 2005 2006 Turbocharger Turbine
For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006
Specification:

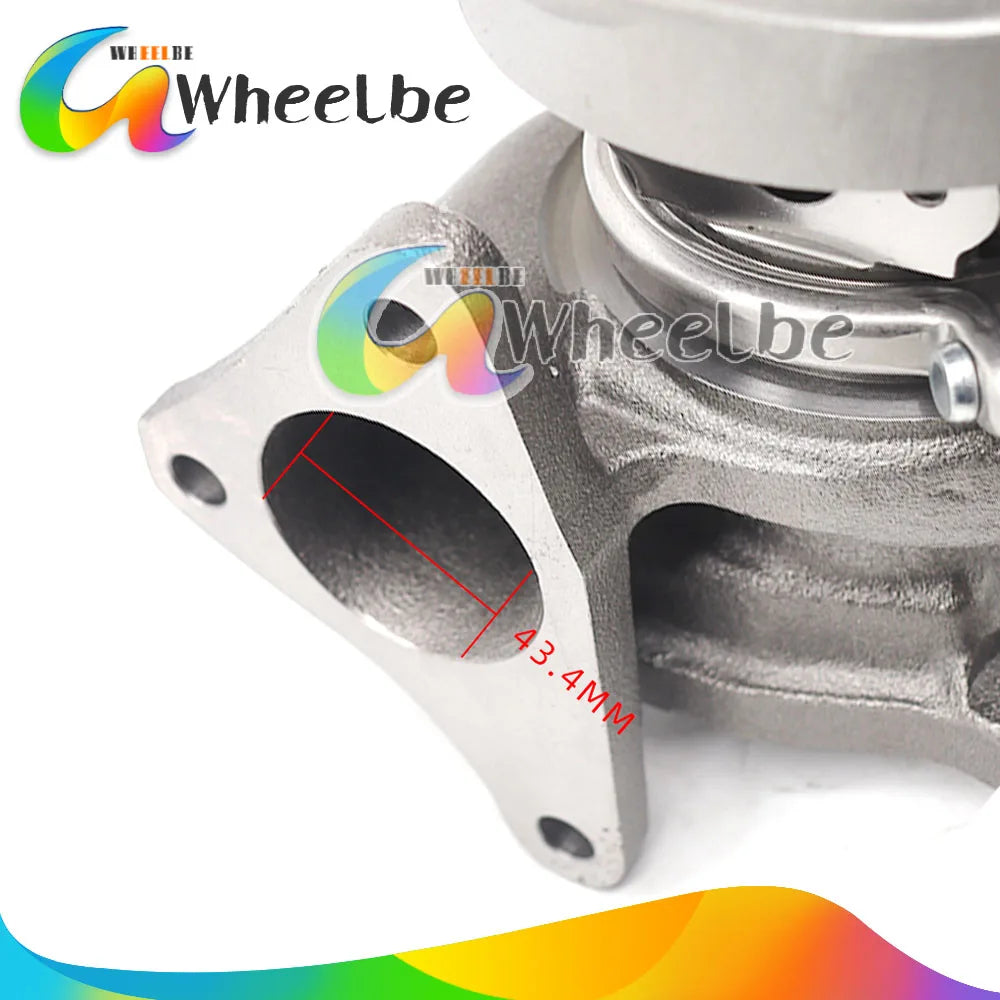

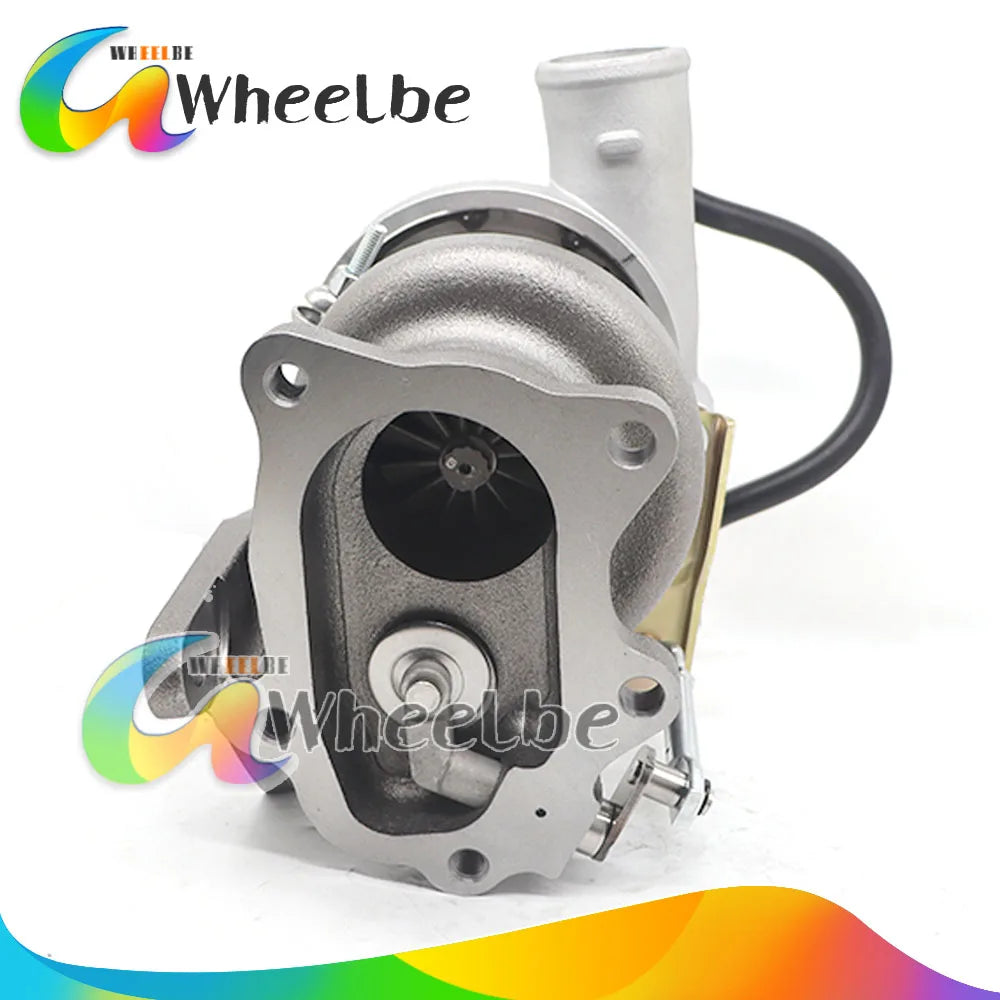

Exhaust Outlet Flange:5-Bolt Flange
Exhaust Intlet Flange:3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm⊃2;
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm

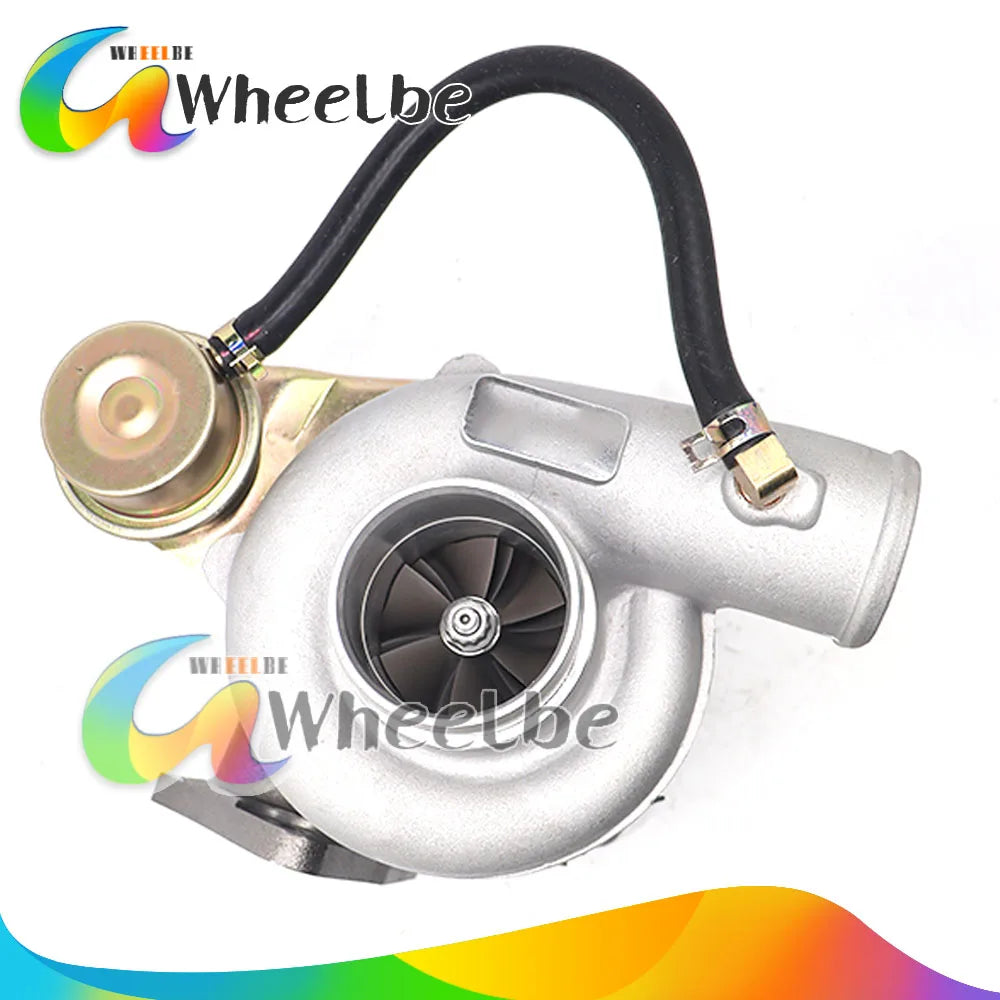

Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm⊃2;
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm
Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing:270 degree
Hosepower: Up to 420 HP
PHOTOS:
